How to Wire a Potentiometer?
Do you want to learn how to wire a potentiometer? Potentiometers are commonly used in various electronic applications to control the volume, brightness, speed, and other parameters. In this article, we will guide you through the process of wiring a potentiometer step by step. So, let’s dive right in!
What is a Potentiometer?
A potentiometer, or pot for short, is a three-terminal resistor with a sliding or rotating contact that forms a voltage divider. It allows you to vary the resistance in a circuit manually. This enables you to control the output of a device, such as the volume of a speaker or the brightness of an LED, by changing the resistance value.
Materials Needed
- Potentiometer
- Breadboard
- Jumper wires
- Power source
- LED or any other load
- Multimeter
Step-by-Step Guide
Follow these steps to wire a potentiometer:
Step 1: Identify the Terminals
Examine your potentiometer and locate the three terminals. They are usually labeled “1”, “2”, and “3”. Terminal “2” is the wiper (moving contact), while terminals “1” and “3” are the fixed ends of the resistor.
Step 2: Connect the Potentiometer to the Circuit

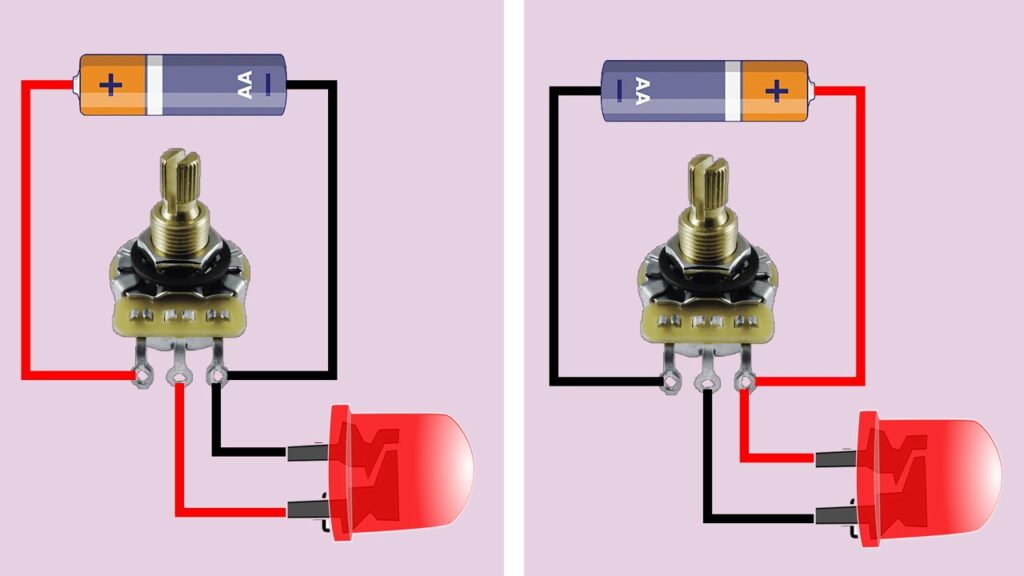

Insert the potentiometer into the breadboard. Connect one end of the potentiometer to the positive terminal of the power source using a jumper wire. Connect the other end to the negative terminal. Finally, connect the wiper terminal to the load (LED in this case).
Step 3: Measure the Resistance
Use a multimeter to measure the resistance between terminals “1” and “3”. Rotate the potentiometer knob and observe the resistance value changing. This confirms that the potentiometer is wired correctly.
Testing the Potentiometer
Once you have wired the potentiometer, test it by varying the knob and observing the changes in the load (LED brightness). If everything works as expected, congratulations! You have successfully wired a potentiometer.
Conclusion
Wiring a potentiometer is a basic skill that every electronics enthusiast should master. By understanding how to wire a potentiometer, you can control various devices and customize their performance to suit your needs. So, grab your potentiometer and start experimenting with it today!
