How to Wire a 3-Phase Power System for Electronics
Wiring a 3-phase power system for electronics may seem daunting at first, but with the right guidance, it can be a manageable task. In this guide, we will walk you through the steps to wire a 3-phase power system safely and effectively.
Understanding 3-Phase Power
Before we dive into the wiring process, it is important to understand what 3-phase power is. 3-phase power is a type of electrical power transmission that uses three conductors to deliver power. This type of power system is commonly used in industrial settings and is known for its efficiency and power delivery capabilities.
Components Needed
- 3-phase power source
- Electrical wiring
- 3-phase power outlets
- Electrical tools (such as wire cutters and screwdrivers)
Steps to Wire a 3-Phase Power System
Step 1: Turn Off the Power
Before you start wiring your 3-phase power system, make sure to turn off the power source to avoid any accidents or electric shocks. Safety should always be your top priority when working with electricity.
Step 2: Identify the Phases

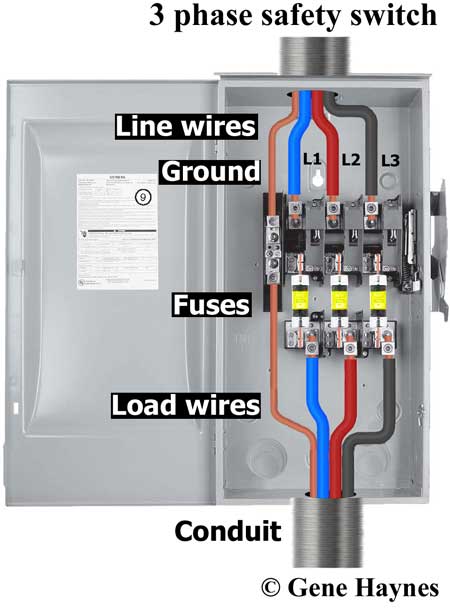

Each phase in a 3-phase power system is designated by a different color wire: red, black, and blue. Make sure to identify and label each phase correctly before proceeding with the wiring process.
Step 3: Connect the Phases
Using electrical wiring, connect each phase to its corresponding outlet. Ensure that the connections are secure and tight to prevent any loose connections that could lead to power loss or electrical hazards.
Step 4: Test the System
Once you have wired the 3-phase power system, it is crucial to test the system to ensure that everything is functioning correctly. Use a multimeter to check the voltage and current in each phase to verify that the system is working as intended.
Conclusion
Wiring a 3-phase power system for electronics may seem overwhelming at first, but with the right knowledge and precautions, it can be a straightforward process. By following the steps outlined in this guide and prioritizing safety, you can wire a 3-phase power system with confidence.
