How to Use an RFID RC522 Module with ESP8266
RFID (Radio Frequency Identification) technology is commonly used in access control systems, inventory tracking, and payment systems. The RC522 module is a popular RFID reader that can be easily interfaced with the ESP8266, a powerful Wi-Fi microcontroller.
In this tutorial, we will walk you through the steps to use the RFID RC522 module with an ESP8266 module. By the end of this guide, you will be able to read RFID tags and send the data wirelessly using the ESP8266.
Materials Required
- ESP8266 module
- RFID RC522 module
- Jumper wires
- Arduino IDE
- RFID tags
- USB cable
Step 1: Wiring the Modules

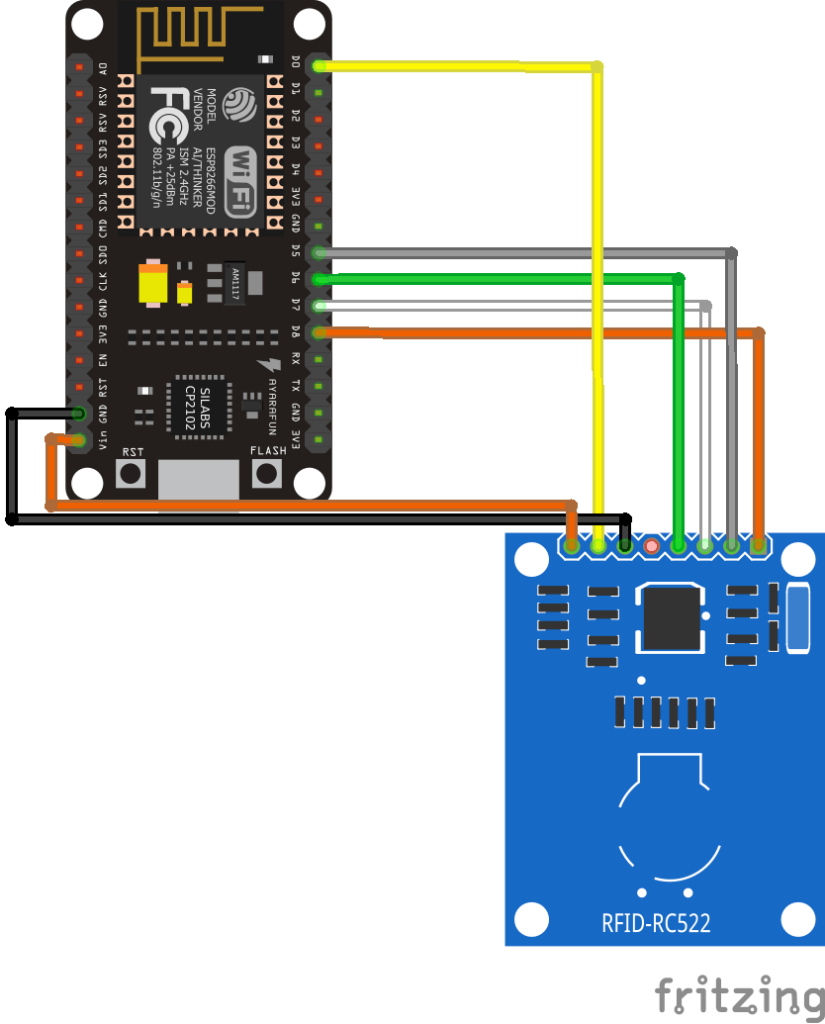

First, connect the RFID RC522 module to the ESP8266 module as follows:
- Connect the RFID module’s SDA pin to D2 on the ESP8266
- Connect the SCK pin to D5
- Connect the MOSI pin to D7
- Connect the MISO pin to D6
- Connect the IRQ pin to any available pin on the ESP8266
- Connect the RST pin to D1
- Connect the GND to GND and 3.3V to 3.3V
Step 2: Installing Libraries
Next, open the Arduino IDE and install the following libraries:
- MFRC522
- SPI
You can install these libraries by going to Sketch > Include Library > Manage Libraries and searching for the libraries by name.
Step 3: Coding the Sketch
Now, it’s time to write the code to read RFID tags and send the data wirelessly using the ESP8266. You can find the detailed code in our GitHub repository.
Step 4: Testing
Upload the code to your ESP8266 module and open the serial monitor to see the output. Scan an RFID tag using the RC522 module, and you should see the tag ID displayed on the serial monitor.
That’s it! You have successfully interfaced an RFID RC522 module with an ESP8266 module. You can now integrate this setup into your projects for access control, inventory tracking, or any other application that requires RFID technology.
Feel free to experiment with different functionalities and expand the capabilities of your RFID-based projects. The possibilities are endless with RFID technology and the ESP8266 module.
Conclusion
In this tutorial, we covered how to use an RFID RC522 module with an ESP8266 module. By following the steps outlined in this guide, you can start incorporating RFID technology into your projects and explore the countless applications it offers.
