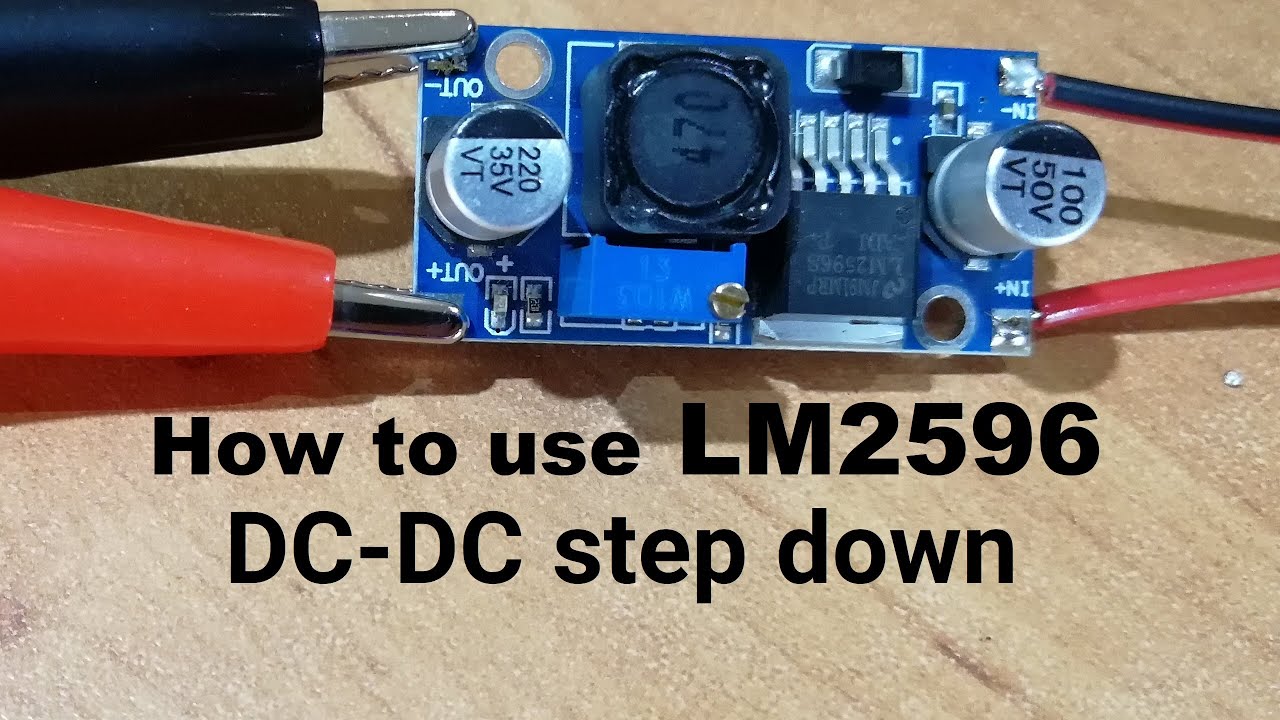

How to Use an LM2596 Voltage Regulator
Are you tired of dealing with unstable voltages in your electronic projects? The LM2596 voltage regulator is here to save the day! This powerful device allows you to easily and efficiently regulate the voltage in your circuits, ensuring a stable power supply for all your components. In this article, we will guide you through the process of using an LM2596 voltage regulator effectively.
Understanding the LM2596 Voltage Regulator
The LM2596 is a versatile and widely used voltage regulator that can step-down voltage from the input to the desired output level. It is compact, efficient, and easy to use, making it a popular choice among hobbyists and professionals alike.
Connecting the LM2596
Before you can start using the LM2596, you need to connect it correctly to your circuit. Here are the steps to follow:
- Identify the input and output pins of the LM2596. The input pins are VIN (input voltage) and GND (ground), while the output pins are VOUT (output voltage) and GND.
- Connect the input voltage source to the VIN pin and ground to the GND pin.
- Connect the output load to the VOUT pin and ground to the GND pin.
Setting the Output Voltage
One of the key features of the LM2596 is its adjustable output voltage. To set the output voltage to your desired level, follow these steps:
- Turn the POT (potentiometer) screw on the LM2596 clockwise to increase the output voltage or counterclockwise to decrease it.
- Use a multimeter to measure the output voltage and ensure it matches your desired level.
Testing the LM2596
After connecting and setting the LM2596, it’s essential to test it to ensure it’s functioning correctly. Here are some steps to test the LM2596:
- Apply power to the input pins of the LM2596.
- Measure the output voltage using a multimeter to verify it matches the set level.
- Connect a load to the output pins and check if the LM2596 can regulate the voltage properly.
Conclusion
Using an LM2596 voltage regulator is an effective way to stabilize the power supply in your electronic projects. By following the steps outlined in this article, you can easily and confidently utilize the LM2596 to regulate voltage and ensure the smooth operation of your circuits.
