How to Use a 7805 Voltage Regulator?
If you are working on a project that requires a stable voltage supply, then a 7805 voltage regulator is a handy component to have in your toolkit. In this article, we will discuss how to use a 7805 voltage regulator effectively.
What is a 7805 Voltage Regulator?
A 7805 voltage regulator is a popular linear voltage regulator that outputs a constant 5 volts DC. It is commonly used in electronic circuits to provide a stable voltage supply for various components such as microcontrollers, sensors, and other integrated circuits.
The 7805 voltage regulator has three pins: input (VIN), output (VOUT), and ground (GND). It regulates the output voltage by dissipating excess power as heat.
How to Use a 7805 Voltage Regulator?

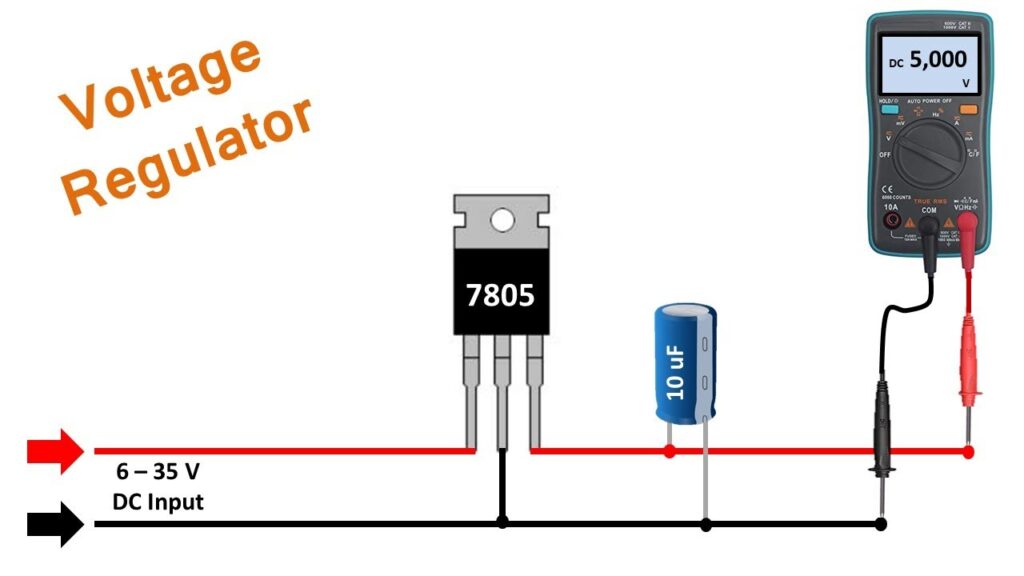

Using a 7805 voltage regulator is straightforward. Follow these steps to effectively utilize a 7805 voltage regulator in your circuit:
- Connect the Input Voltage: Connect the input voltage (VIN) pin of the 7805 regulator to a power source that supplies a voltage higher than 5 volts but less than 35 volts DC. Make sure to observe the correct polarity.
- Connect the Ground: Connect the ground (GND) pin of the 7805 regulator to the ground of your circuit.
- Connect the Output: Connect the output (VOUT) pin of the 7805 regulator to the components that require a 5-volt supply.
- Decoupling Capacitor: To improve the stability of the voltage regulation, it is recommended to add a decoupling capacitor (0.1uF) between the input and ground pins of the regulator.
Additional Tips for Using a 7805 Voltage Regulator:
- Heat Dissipation: Since the 7805 regulator dissipates excess power as heat, it is advisable to use a heat sink to prevent overheating.
- Input Capacitor: Adding a capacitor (1uF) between the input and ground pins of the regulator can help filter out any noise in the input voltage.
- Output Capacitor: Similarly, adding a capacitor (0.33uF) between the output and ground pins can help stabilize the output voltage.
By following these simple steps and tips, you can effectively use a 7805 voltage regulator in your electronic projects to ensure a stable voltage supply for your components.
In Conclusion
A 7805 voltage regulator is a versatile component that is essential for many electronic projects. By understanding how to use it properly and implementing the additional tips mentioned, you can ensure a reliable and stable voltage supply for your circuits.
